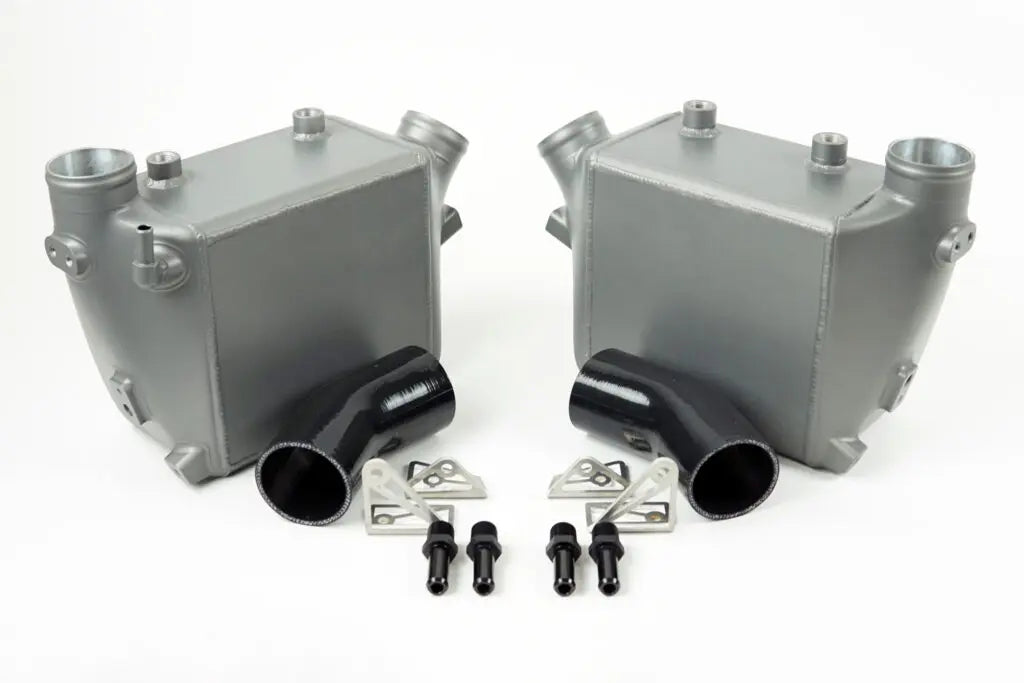

Boost Logic CSF McLaren 720S/765LT High-Performance Intercooler System
Boost Logic CSF McLaren 720S/765LT High-Performance Intercooler System
TBK Motorsports is an authorized dealer for CSF and every single brand we sell.
Part number / SKU:
Please contact TBK for current supplier availability and the estimated completion-to-ship date before placing your order. Available to order does not mean in stock. Made-to-order and backordered items may take several weeks; estimates vary by product.
Shipping cost depends on the item and destination. Please confirm your shipping quote with TBK before ordering. Estimated ship dates do not include carrier transit time.
Contact TBK for availability, ETA and shippingCouldn't load pickup availability
Introducing a truly collaborative effort exemplifying the best in the performance aftermarket industry, 100% designed and manufactured in the USA.
CSF’s new McLaren 720S/765LT High-Performance Intercooler System – the new advantage for the absolute best quarter-mile traps and half-mile speeds, designed for the fastest and most powerful McLarens in the world.
Initially designed by a CSF R&D partner using state-of-the art 3D scanning and prototyping equipment, we incorporated a massive custom-spec CSF bar/plate air-to-water core that is 68% larger than the OEM unit. Voodoo Autosport was then consulted to further enhance the design for a complete drop-in fit installation that is truly plug-and-play. Lastly, but not least, CSF reached out to the best tuners of the world’s fastest McLarens, M Engineering, to performance test the coolers. Final results: 99% efficiency (vs. OEM 94%) along with lower pressure drop across the cooling system.
- Custom-Spec High-Performance CSF Bar/Plate Core Built In-House
- 68% Increase in Core Volume vs. OEM
- Single Core Dual-Pass Design vs. Inefficient Multiple Core Design Found in Competitors Lower Quality/Less Efficient Offerings
- Efficiency Tested at 99% by M Engineering vs.OEM 94%
- Pressure Tested to 4bar (58psi)
- CNC Machined 6061 Aluminum Billet End Tanks Designed and Produced by RK Autowerks
- Finished in CSF’s Aerospace-Grade Thermal Dispersion Space Grey Coating for Maximum Heat Transfer Efficiency and OEM+ Aesthetic
- Custom Finishes Available – View Possible Options or Please Inquire.

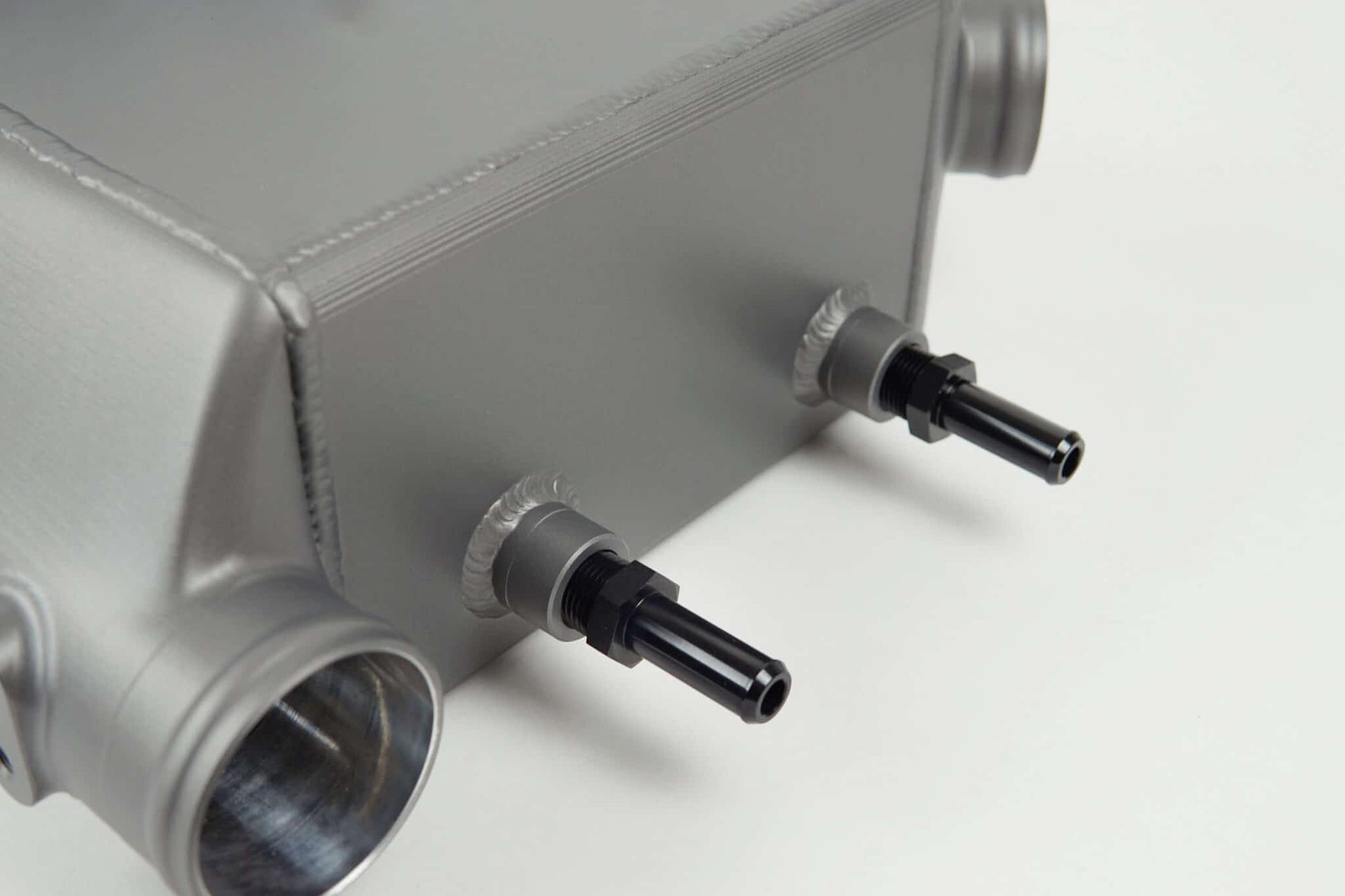

- Integrated Dual 1/8-NPT Methanol Injection Bungs Positioned on Outlet Tank for Post-Intercooling Reduction of IATs
- Come Pre-Plugged For Vehicles Without Methanol Injection
- Can Also Be Used As Sensor Ports
- Complete Drop-in Fit Package With No Modifications Required for Installation
- Can Be Installed From the Rear Wheel Well Without Removing the Downpipes

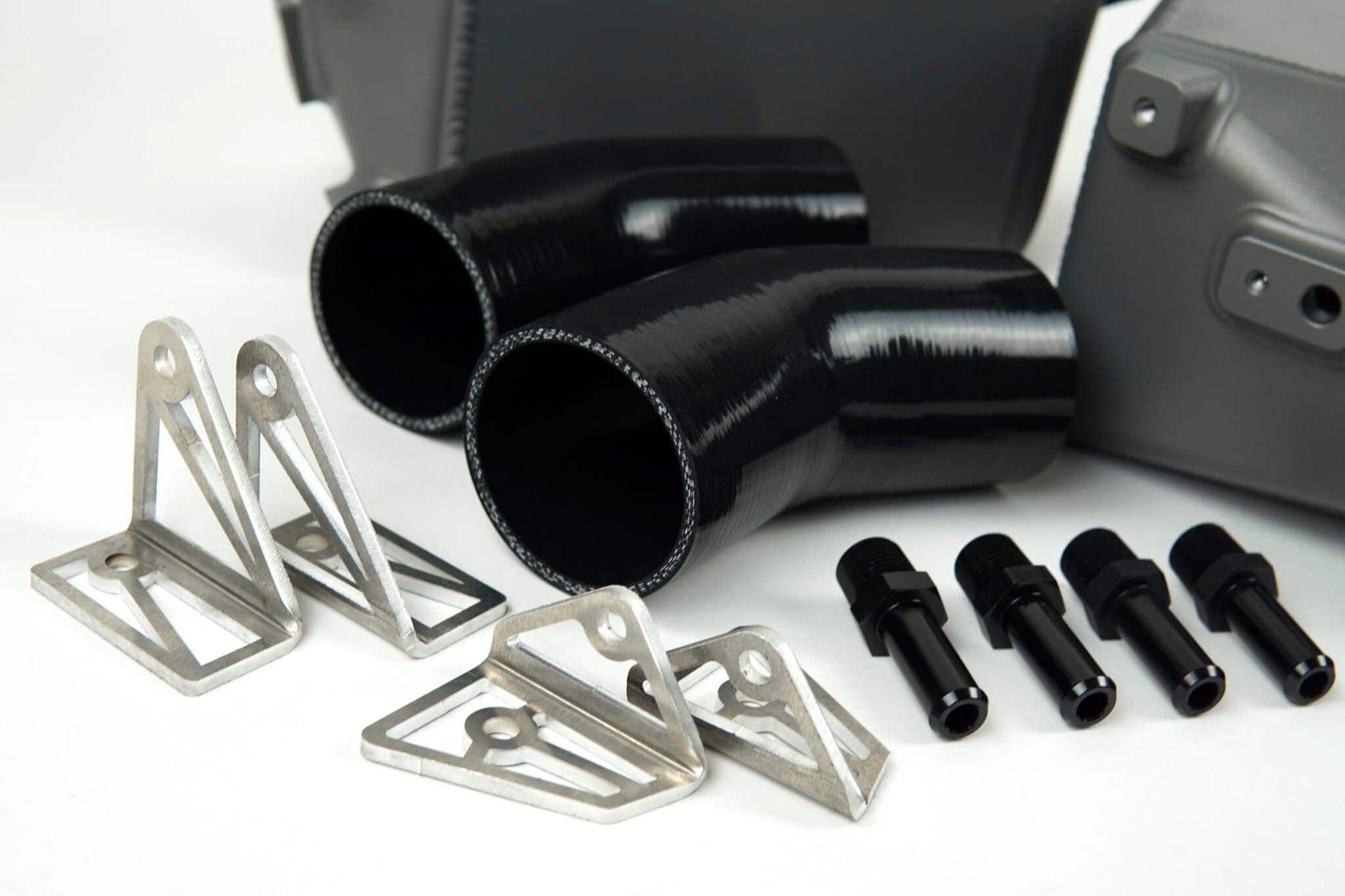

- Includes Laser-Cut Machined Brackets and Reinforced Silicone Couplers for Throttle Body Connections
- Made in the US
- Fits:
- 2017+ McLaren 720S (Does Not Fit Spyder Models)
- 2021+ McLaren 765LT (Does Not Fit Spyder Models)
