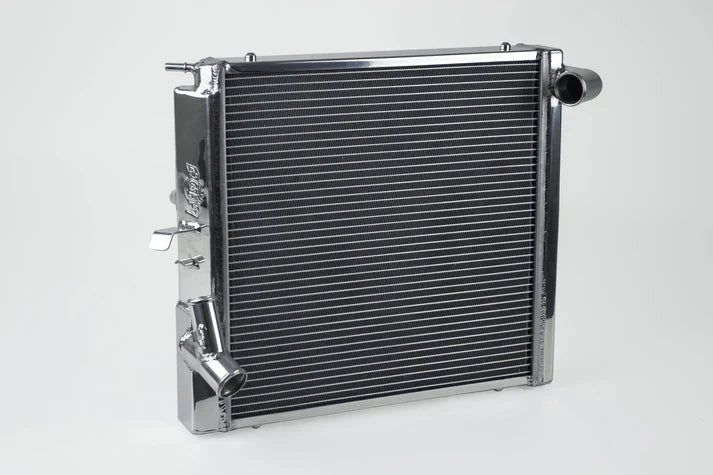

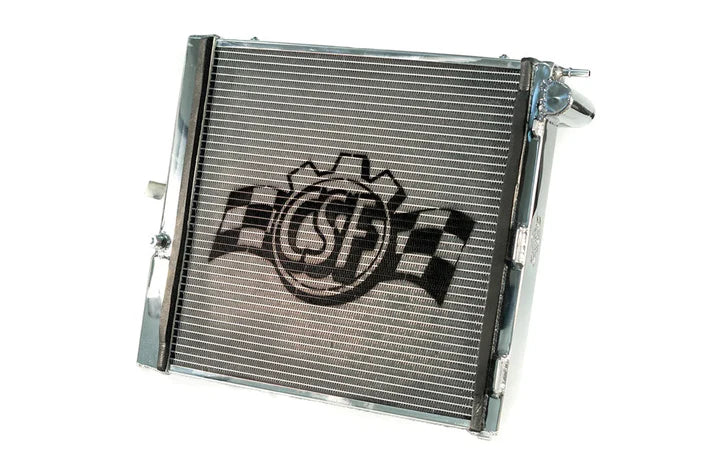

Capristo CSF Radiator Set - 991 Turbo | GT3/GT3RS | 981 Spyder | GT4

This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

The CSF 911 Carrera radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

• 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
• 6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
• Individually Leak and Pressure Tested
• All-Aluminum Design with 100% TIG-Welded End Tanks
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• OEM-Style Machined Inlet/Outlet Connections
• Smooth Satin Finish
• Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation
• Accepts OEM AC Condenser and Fan Shroud
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
• Fulfilled in single quantity - need two for a complete pair

Manufacturer: Capristo product specifications
